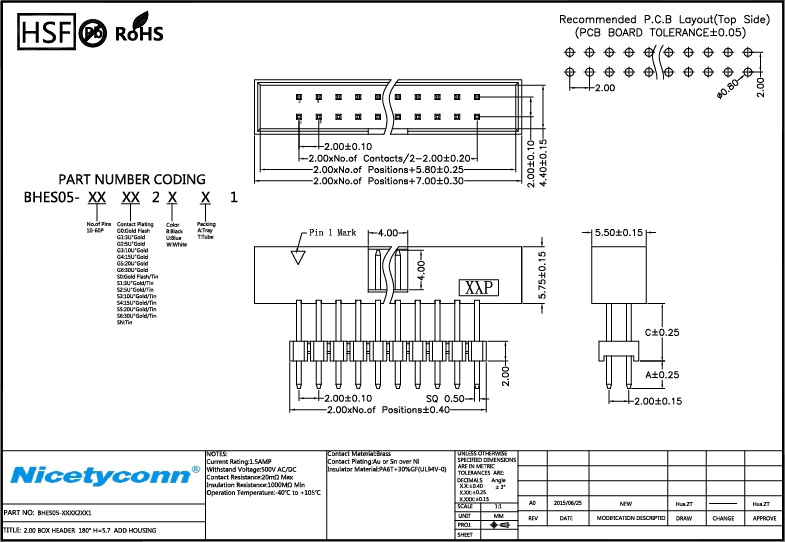

2.0 mm Pitch 180 Degree Box Header Add Plastic H=5.7 |
|
Specification: |
|
Current Rating: 1.5AMP |
|
Withstand Voltage: 500V AC/DC |
|
Contact Resistance: 20mΩ Max |
|
Insulation Resistance: 1000MΩ Min |
|
Operation Temperature: -40oC to +105oC |
|
Insulation Material: PA6T(UL94V-0) |
|
Contact Material: brass |
|
Contact Plating: Au or Sn over Ni |
