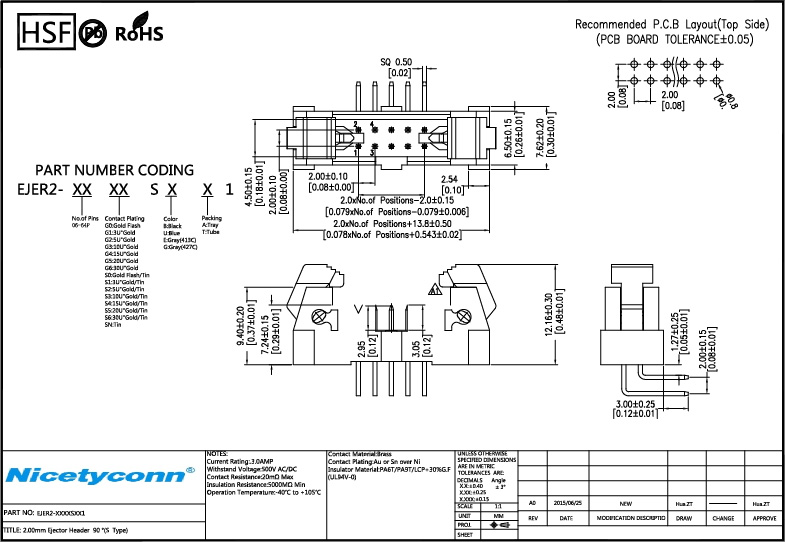

2.0 mm Pitch S Type Right Angle Ejector Header |
|
Specification: |
|
Current Rating: 3.0AMP |
|
Withstanding voltage: 500V AC/DC |
|
Contact Resistance: 20mΩ Max |
|
Insulation Resistance: 5000 mΩ Min |
|
Operation Temperature: -40oC to +105oC |
|
Contact Material:Brass |
|
Contact Plating: Au or Sn over Ni |
|
Insulator Material: PA6T/PA9T/LCP+30%G.F(UL94V-0) |
